Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: YUTE
  • Model Number: SAE
  • Product name: braided fuel hose
  • Materail: nbr
  • Size rang: 1/8~1inch
  • W.P: 20bar
  • Temperature:: -40℃~ +120℃
  • Main market: Europe/ America/Southeast Asia
  • B.P: 1200psi
  • Certification: ISO/TS16949:2009
  • Free sample: yes
  • OEM service: yes

Packaging & Delivery

Packaging Details packing of braided fuel hose : carton or according to customer's requirement
Delivery Time Shipped in 25 days after payment

low permeability sae j30 r6  5/16 inch flexible hydraulic braided fuel hose





Product Description





   Specifications(   braided fuel hose   )

Tube:

Fuel and oil resistant smooth bore



Reinforcement:

High tensile braided textiles



Cover:

Resistant to chemical attack or swelling by gasoline,oxidized gasoline,E85 gasoline and diesel fuel

Standard:

SAE J 30R6/R7/R9/R10

DIN 73379 Type 2A

Marking:

Manufacture’s identification/Fuel hose/Size/Standard/W.P and B.P

Working  Temperature:

-40~ +120

(-40 F ~ +248F)

Packaging:

20 meters/roll or according to customer’s requirements

Applications:

Designed for conveying gasoline E-85 gasoline,diesel and bio-diesel fuel in Automobile industry





Specfication for braided fuel hose:

NO

I.D

Refer to O.D

Working pressure

Burst

 pressure

approximate Weight

(inch)

(mm)

(inch)

(mm)

MPa

Psi

MPa

Psi

kg/m

lbs/ft

1

1/8

3.2±0.2

0.35

9±0.3

2.06

300

8.27

1200

0.078

0.12

2

5/32

4±0.2

0.4

10±0.3

2.06

300

8.27

1200

0.092

0.14

3

3/16

4.8±0.2

0.43

11±0.3

2.06

300

8.27

1200

0.108

0.16

4

1/4

6.3±0.3

0.5

12.7±0.3

2.06

300

8.27

1200

0.134

0.2

5

5/16

8.0±0.3

0.56

14±0.3

2.06

300

8.27

1200

0.147

0.22

6

3/8

9.5±0.3

0.63

16±0.4

2.06

300

8.27

1200

0.182

0.27

7

15/32

12±0.3

0.75

19±0.5

2.06

300

8.27

1200

0.238

0.35

8

1/2

12.7±0.4

0.78

20±0.5

2.06

300

8.27

1200

0.262

0.39

9

5/8

16±0.4

0.94

24±0.5

1.03

150

4.12

600

0.351

0.52

10

3/4

19±0.4

1.13

28.8±0.5

1.03

150

4.12

600

0.515

0.77

11

1

25.4±0.5

1.38

35±0.6

1.03

150

4.12

600

0.637

0.95

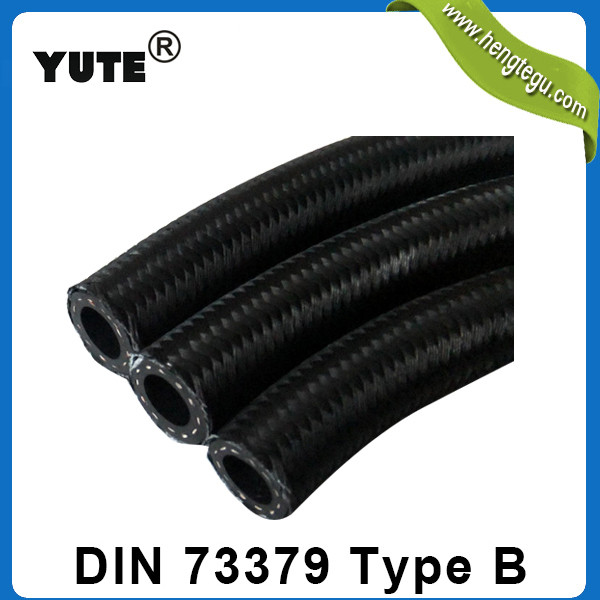

Detailed Images

 braided fuel hose







Packaging & Shipping





Company Information

 Yuyao City Hengtegu Auto Parts Factory is located in Linshan Town, Yuyao City, Zhejiang Province, from hangzhou international airport 40 kilometers, traffic is very convenient.Integrates development –manufacturer - sales of professional designer &manufacturer of rubber hose , now has more than 60 employees, including technical personnel more than 30% of the total number of employees, annual output of ten million meters of all kinds of rubber hoses.



At present, the products are widely application in Automobile manufacturers - Auto aftermarket - Engineering machinery - Refrigeration - Welding industry, the main products are: fuel hose,brake hose, EPDM air hose, fuel hose,diesel hose, refrigerant charging hose, air conditioning hose and oxygen/ acetylene hose etc.Products are exported to Europe,American and Southeast Asia market, quality and service well received by customers, in 2013 passed the ISO/TS16949:2009 quality management system certification

Family




 Factory

process flow

Certifications





FAQ



Q1:Where is the main market in your products?

 A: Europe,South America, North America,Southeast Asia

Q2:Do you have passed any certificate?

 A: ISO/TS 16949:2009,3C,RoHS

Q3:How long is the warranty of the braided fuel hose?

 A:The warranty is 5 years.
































Our Services



1.According to your requirements offer custom made service

2.Free samples can be sent for testing

3.Accept OEM service and small trail order

4.Your inquiry related to our products or prices will be replied in 8 hrs

5.Well-trained and experienced staffs to answer all your enquirers in fluent English

6.Distributorship are offered for your unique design and some our

  current model and specification

7.Protection of your sales area ideas of design and all your private information
