Automotive Fuel Line Hose 1/4" x 25' 6mm fuel oil rubber hose

FOB Reference Price:Get Latest Price
US $1.69-5.79 / Meters | 2000 Meter/Meters 6mm fuel oil rubber hose (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
YUTE
Model Number:
1/4"
products name:
6mm fuel oil rubber hose
material:
rubber,fibers
color:
red or black
working pressure:
20 BAR(300 psi)
bursting pressure:
80 BAR(1200 psi)
temperature range:
-40~+110 centigrade
delivery time:
15 days
package:
according to customers' requirement
accept OEM service:
yes
length:
25/50/100 feet or according to customers requirement
Supply Ability
Supply Ability:
30000 Meter/Meters per Day 6mm fuel oil rubber hose
Packaging & Delivery
Packaging Details
6mm fuel oil rubber hose package:25/50/100 ft per roll
Port
NingBo/ShangHai for 6mm fuel oil rubber hose
Lead Time :
15days

Product name:  Automotive Fuel Line Hose 1/4" x 25'  6mm fuel oil rubber hose



Product Description



Specifications( 6mm fuel oil rubber hose )

Tube:

Fuel and oil resistant smooth bore



Reinforcement:

High tensile braided textiles



Cover:

Resistant to chemical attack or swelling by gasoline,

oxidized gasoline,E85 gasoline and diesel fuel

Standard:

SAE J 30R6/R7/R9/R10

DIN 73379 Type 2A

Marking:

Manufacture’s identification/Fuel hose/

Size/Standard/W.P and B.P

Working Temperature:

-40℃~ +120

(-40 F ~ +248F)

Packaging:

20 meters/roll or according to customer’s requirements

Applications:

Designed for conveying gasoline E-85 gasoline,diesel and bio-diesel

fuel in Automobile industry







Technical Parameter:

NO

I.D

Refer to O.D

Working pressure

Burst

 pressure

approximate Weight

(inch)

(mm)

(inch)

(mm)

MPa

Psi

MPa

Psi

kg/m

lbs/ft

1

1/8

3.2±0.2

0.35

9±0.3

2.06

300

8.27

1200

0.078

0.12

2

5/32

4±0.2

0.4

10±0.3

2.06

300

8.27

1200

0.092

0.14

3

3/16

4.8±0.2

0.43

11±0.3

2.06

300

8.27

1200

0.108

0.16

4

1/4

6.3±0.3

0.5

12.7±0.3

2.06

300

8.27

1200

0.134

0.2

5

5/16

8.0±0.3

0.56

14±0.3

2.06

300

8.27

1200

0.147

0.22

6

3/8

9.5±0.3

0.63

16±0.4

2.06

300

8.27

1200

0.182

0.27

7

15/32

12±0.3

0.75

19±0.5

2.06

300

8.27

1200

0.238

0.35

8

1/2

12.7±0.4

0.78

20±0.5

2.06

300

8.27

1200

0.262

0.39

9

5/8

16±0.4

0.94

24±0.5

1.03

150

4.12

600

0.351

0.52

10

3/4

19±0.4

1.13

28.8±0.5

1.03

150

4.12

600

0.515

0.77

11

1

25.4±0.5

1.38

35±0.6

1.03

150

4.12

600

0.637

0.95



Buying Guides:

SAE30R2

Coupled and Uncoupled Synthetic Rubber Tube and Cover

SAE30R3

Lightweight Braided Reinforced Lacquer, Cement, or Rubber Covered Hose

SAE30R5

Wire Inserted Synthetic Rubber Tube and Cover

SAE30R6

Low-Pressure Coupled and Uncoupled Synthetic Rubber Tube and Cover

SAE30R7

Low-Pressure Coupled and Uncoupled Synthetic Rubber Tube and Cover

SAE30R8

Low-Pressure Coupled and Uncoupled Synthetic Rubber Tube and Cover

SAE30R9

Fuel Injection Hose Medium-Pressure Coupled and Uncoupled Synthetic Rubber Tube and Cover

SAE30R10

In-Tank, Low-Pressure, Uncoupled Fuel Hoses

SAE30R11

Low Permeation Fuel Fill, Vent, and Vapor Hose

SAE30R12

Low Permeation Fuel Feed and Return Hose

SAE30R13

Diesel and Biodiesel Fuel Feed and Return Hose

SAE30R14

Low Permeation, Low Pressure Coupled and Uncoupled Synthetic Rubber Tube and Cover Hose for Small Engines



Detailed Images

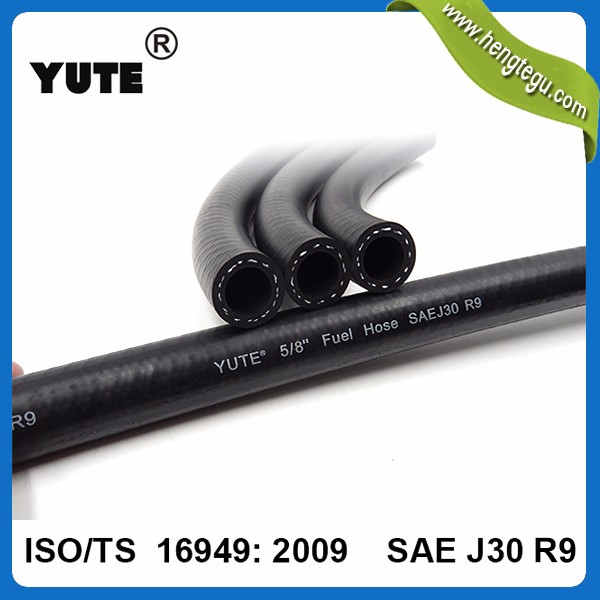

 6mm fuel oil rubber hose

      6666









Company Information

Yuyao Hengtegu Auto Parts Factory specialize in auto rubber hose and

hose assembly’s manufacture.Supply high quality products and offer you

best service.Main products:fuel hose,brake hose,power steering hose,air

hose and refrigerant charging hose.

our family

our company01.jpg

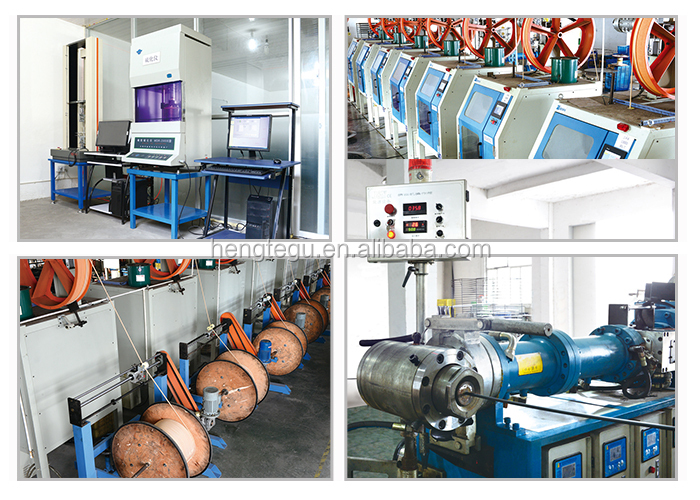

factory view


If you need to know more about our products or factory,please contact us:



Attn:Tina Liu

Add:No.108,XiaoLingtou,Linshan  Town,Yuyao,Ningbo,Zhejiang,China

Website:www.hengtegu.com

Tel:+86-574-62056851

Mobile:+86 15088800627

Skype:tina.liu327

QQ:641450236

Packaging & Shipping

 _08

Certifications

 _09



FAQ



_13
Our Services

1.According to your requirements offer custom made service

2.Free samples can be sent for testing

3.Accept OEM service and small trail order

4.Your inquiry related to our products or prices will be replied in 8 hrs

5.Well-trained and experienced staffs to answer all your enquires

  in fluent english

6.Distributorship are offered for your unique design and some our

  current model and specification

7.Protection of your sales area ideas of design and all your

  private information
